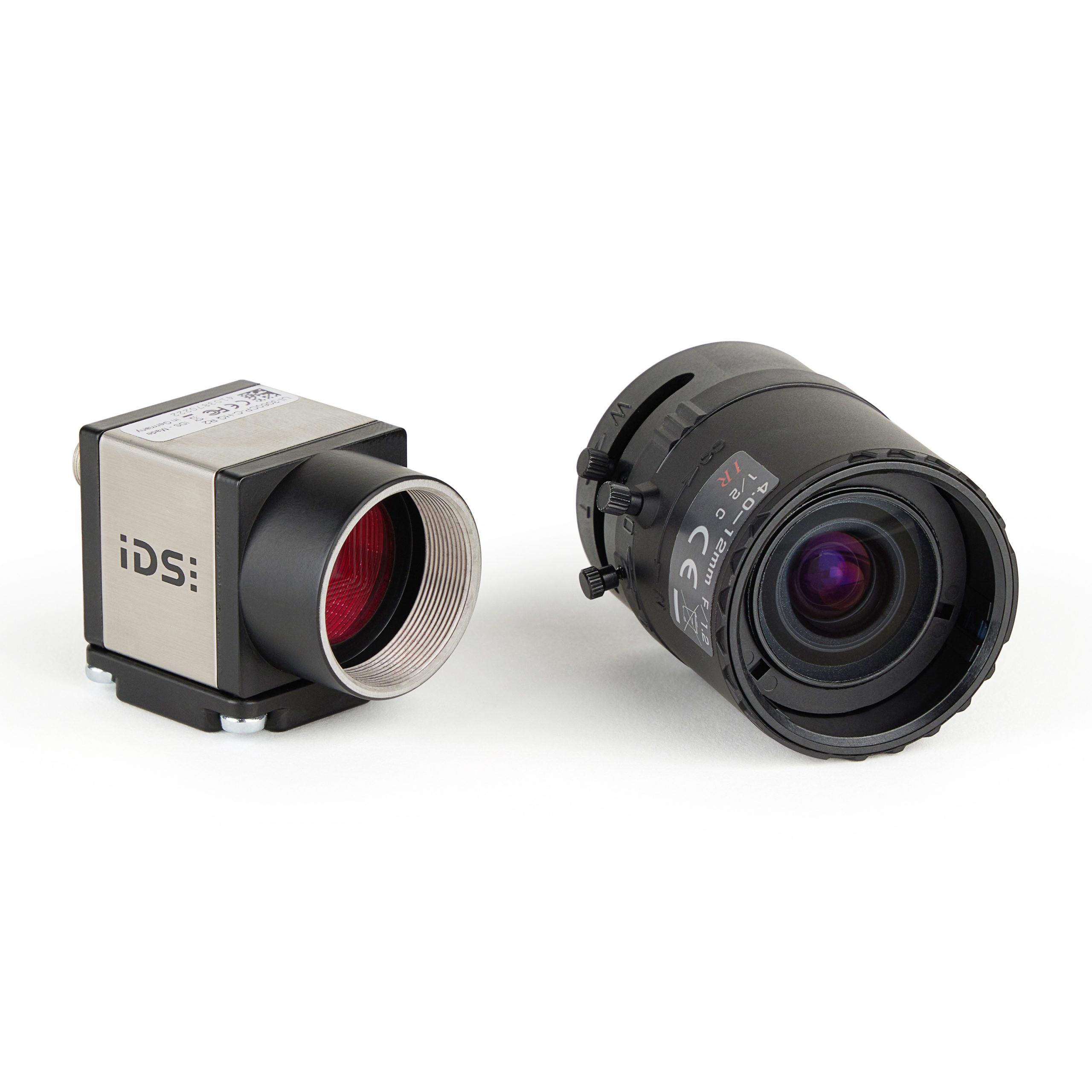

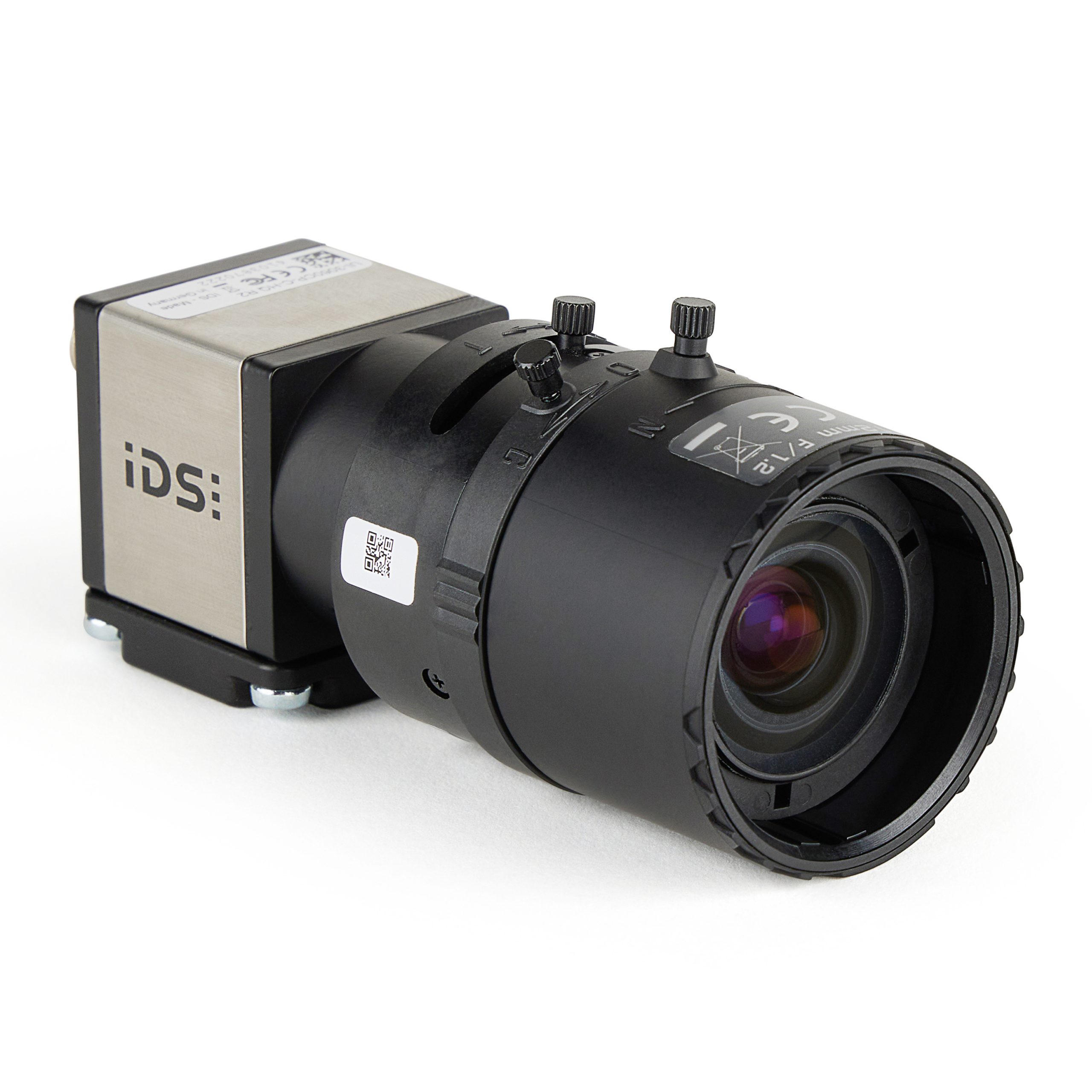

USB 3 High Speed Camera w/ Lens

$1,295.00

The USB 3 industrial camera provides excellent image quality and is extremely low-noise – at a frame rate of 161 fps

Out of stock

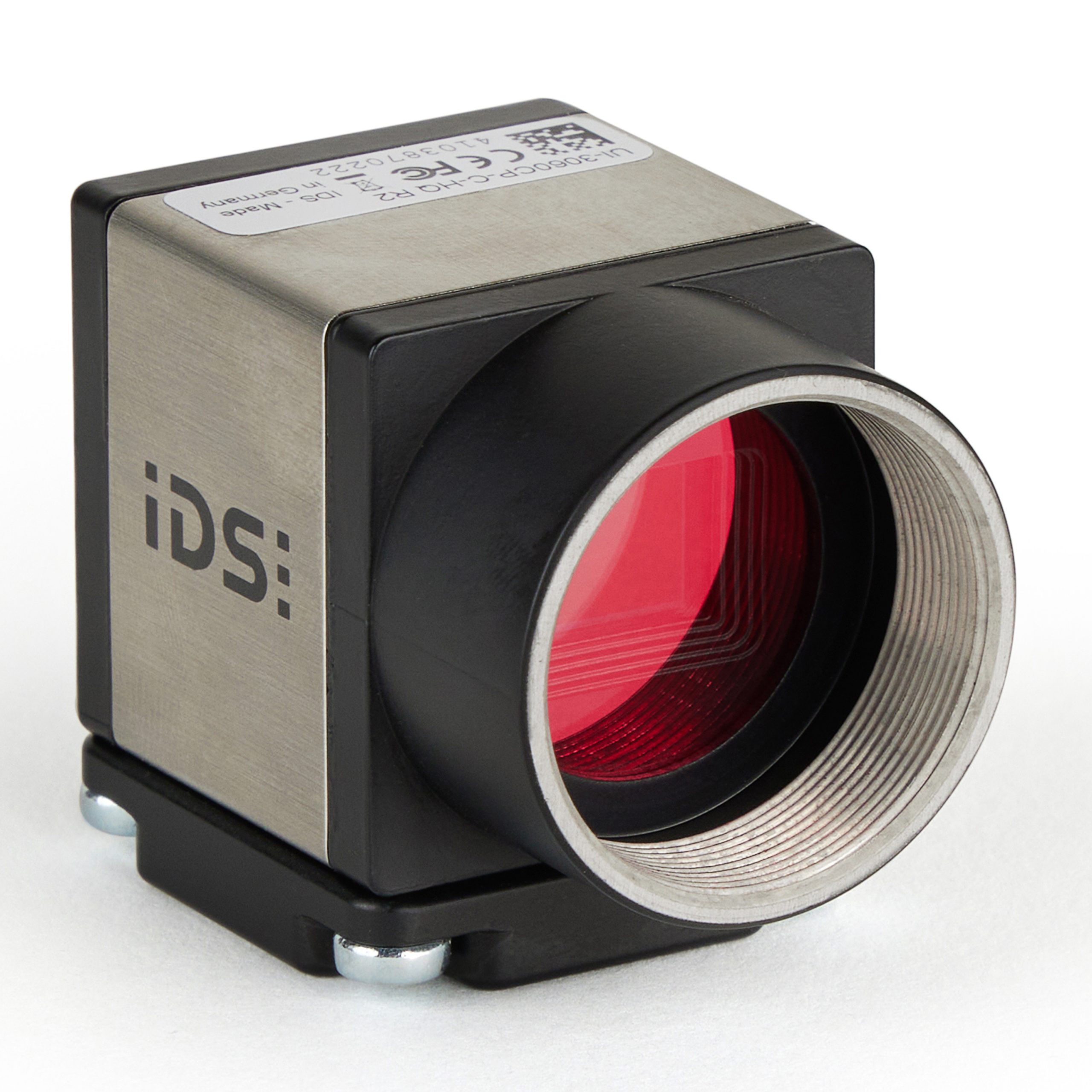

The U3-3060CP with the 2.30 MPix Sony IMX174 (1920 x 1200 px px) sensor sets new standards in terms of light sensitivity, dynamic range and color reproduction. The USB 3 industrial camera provides excellent image quality and is extremely low-noise – at a frame rate of 161 fps. With its 5.86 µm pixels, the global shutter CMOS sensor of the first Pregius generation from Sony is predestined for applications that are supposed to deliver perfect results even in low light conditions, as well as in automation, quality assurance and robotics.

Features:

  • 100% quality tested
  • Calibrated
  • uEye+ software support
  • SuperSpeed USB 5 Gbps
  • Integrated image memory with 128 MB
  • Industrial standard: 29 x 29 x 29 mm
Interface

USB 3

Interface-Speed

5.00 Gbps

Sensor type

CMOS

Frame rate @ resolution max.

161 fps

Resolution (h x v)

1920 x 1200 px

Optical Area

11.251 mm x 7.032 mm

Shutter

Global Shutter

Optical class

1/1.2"

Resolution

2.30 MPix

Pixel size

5.86 µm

IP code

IP30
